Product description: elevator special powder coating, for elevator decorative parts and special design of external consonant series products.
Coating characteristics:-Excellent flattening

-high mechanical properties

-good salt spray resistance

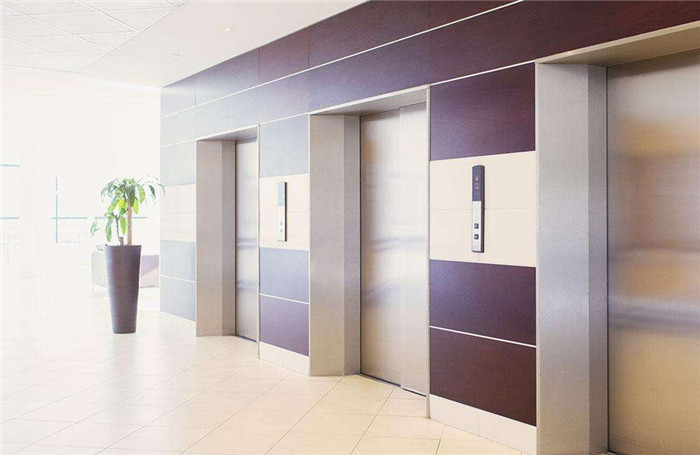

Use path：Suitable for elevator door and other parts

Application parameter：
curing time ：180℃~200℃×10--15min
 Spraying mode：High voltage electrostatic spraying 60-80 KV
 Recommended film thickness：60—150 um
Film properties：

Heading

（test parameter）

Instrument

criterion for judgement

（test Result）

testing standard

（test method）

adhesion

Cutters, tape (cross-hatch test)

Grade 0

GB/T 9286

impact resistance

Impact meter

≥ 50 kg.cm

GB/T 1732

Coating hardness

Pencil hardness

hardness-testing device

Pencil hardness tester

≥1H

GB/T 6739

solvent resistance

Anhydrous ethanol, rag

After 20 wipes, there are no scars and decolorization

discoloration

-

resistance to alkali

alkali resistance

0.1N  NaOH, beaker

≥ 48h, coating without foaming blistering, falling off Flaking, rusting, speckle

GB/T 9274

resistance to water

Beaker, distilled water

≥ 240h, coating without foaming blistering, falling off Flaking rusting, speckle??

GB/T1733

acid fastness

acid resistance

0.1N sulfuric acid, beaker

≥ 48h, coating without foaming blistering, falling off, rusting, speckle ??

GB/T9274

Neutral salt spray test

（salt spray （fog））

Salt spray test box

≥ 240h, rusty foaming

Rusting blistering < 2MM

GB/T1771

flexibility

Bending tester

Crack free shedding of 2mm around axis

GB/T1731

Artificial aging resistance

ageing oven

≥ 480h, loss of light（loss of gross） < 1, discoloration < 1, others 0

Method 1 in GB/T 1865


All the above tests used 0.8mm to remove oil and rust, the thickness of the film was 40 ~ 80um, and the performance index of the film would vary slightly with the gloss.

Environmental protection requirements: this product does not contain arsenic, selenium, lead, hexavalent chromium, mercury, antimony, cadmium and other heavy metals, and fully comply with RoHS environmental requirements.

explain（additional information）： We will provide a complete solution for powder coating consultation and application according to the actual needs of each customer. All the test indicators mentioned in this report are for reference only for laboratory tests. The results are not a performance commitment for the application of the product. The results vary with environmental factors and other conditions.

For more information about our products , please click the MSDS for the corresponding product
